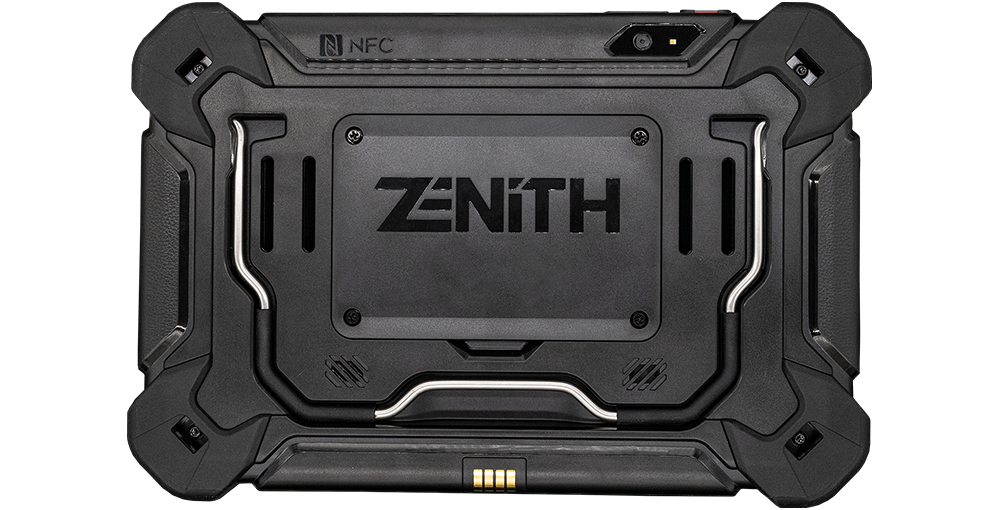

Zenith Z7 Lite Professional Diagnostic Scan Tool

Efficient Connectivity: The Professional Wireless Diagnostic Solution

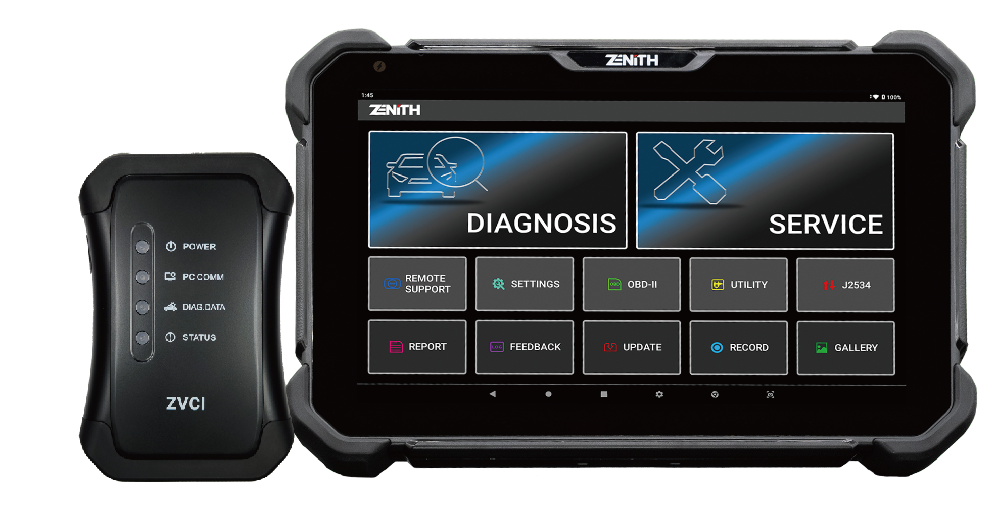

The Zenith Z7 Lite is the streamlined, wireless version of the flagship Z7, designed by EZDS to offer a balanced mix of portability and professional power. Built on the same high-performance 10.1-inch platform as the Z7 Pro, the Lite version utilizes the ZVCI1 module to provide stable, wireless bi-directional diagnostics. It is the ideal "all-in-one" solution for workshops that require a large-screen interface with elite Asian-brand depth and modern vehicle protocol support.

Core Specifications

• High-Speed Processing: Equipped with a 2.2 GHz Octa-Core processor and Android 11, ensuring smooth operation and rapid system transitions.

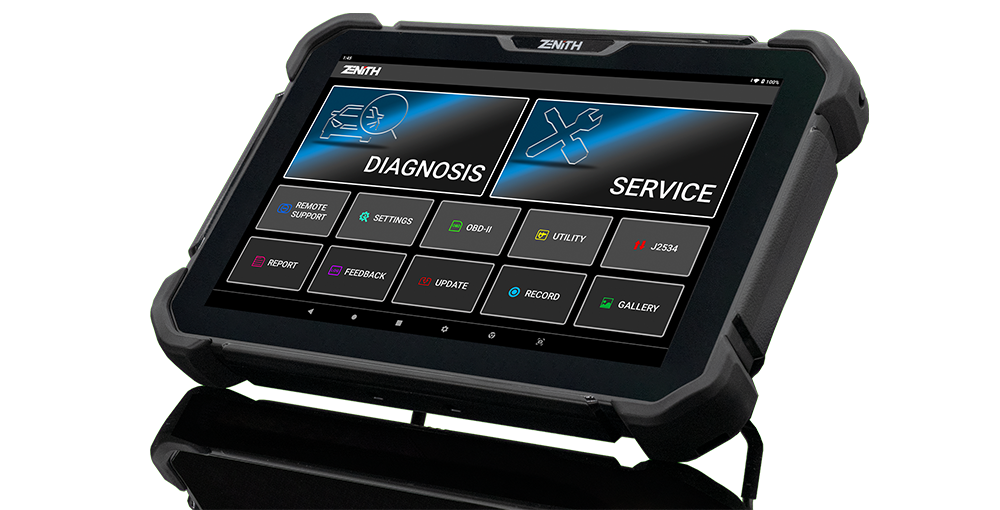

• 10.1" FHD Display: Features a crisp 10.1-inch FHD (1920 x 1200) capacitive touchscreen, designed for clear readability in diverse workshop lighting.

• Ample Memory: 4GB RAM and 64GB of internal storage (expandable up to 256GB via MicroSD) to manage heavy diagnostic databases and logs.

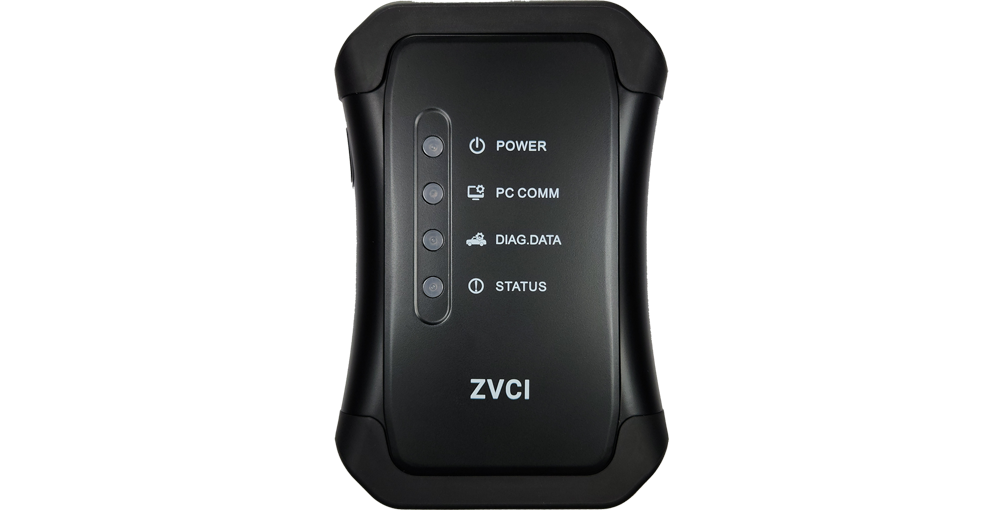

• Wireless Freedom: Uses the ZVCI1 module for reliable wireless communication between the tablet and the vehicle's DLC.

• Built-in Camera & Sound: Includes an 8MP auto-focus camera with LED flash and a loud internal speaker for integrated multimedia and documentation.

• Robust Battery: Powered by a 5800mAh Li-ion battery, providing ample run-time for a full day of diagnostics.

Key Diagnostic Features

• Ultra-Fast System Search: Automatically detects VIN, model year, and engine type to initiate a full vehicle scan in seconds.

• Topology Scan Mapping: Provides a visual representation of all vehicle control modules, identifying faults and allowing direct access to specific system diagnostics.

• FCA Secure Gateway (SGW) Ready: Licensed access to protected systems on the latest Fiat and Chrysler models via integrated AutoAuth support.

• 24V Commercial Vehicle Support: Capable of bi-directional communication with 24V Asian light-to-medium duty trucks.

• Live Data Analysis: Intuitively designed data graphing that allows users to view, search, and compare multiple live sensor streams simultaneously.

• Pre & Post Scan Reporting: Generates professional PDF reports that can be printed via Bluetooth or emailed directly to customers to document repairs.

• Battery Management System (BMS): Specialized diagnostic screens for EV and HEV battery health, displaying SOC, SOH, and individual cell temperatures.
